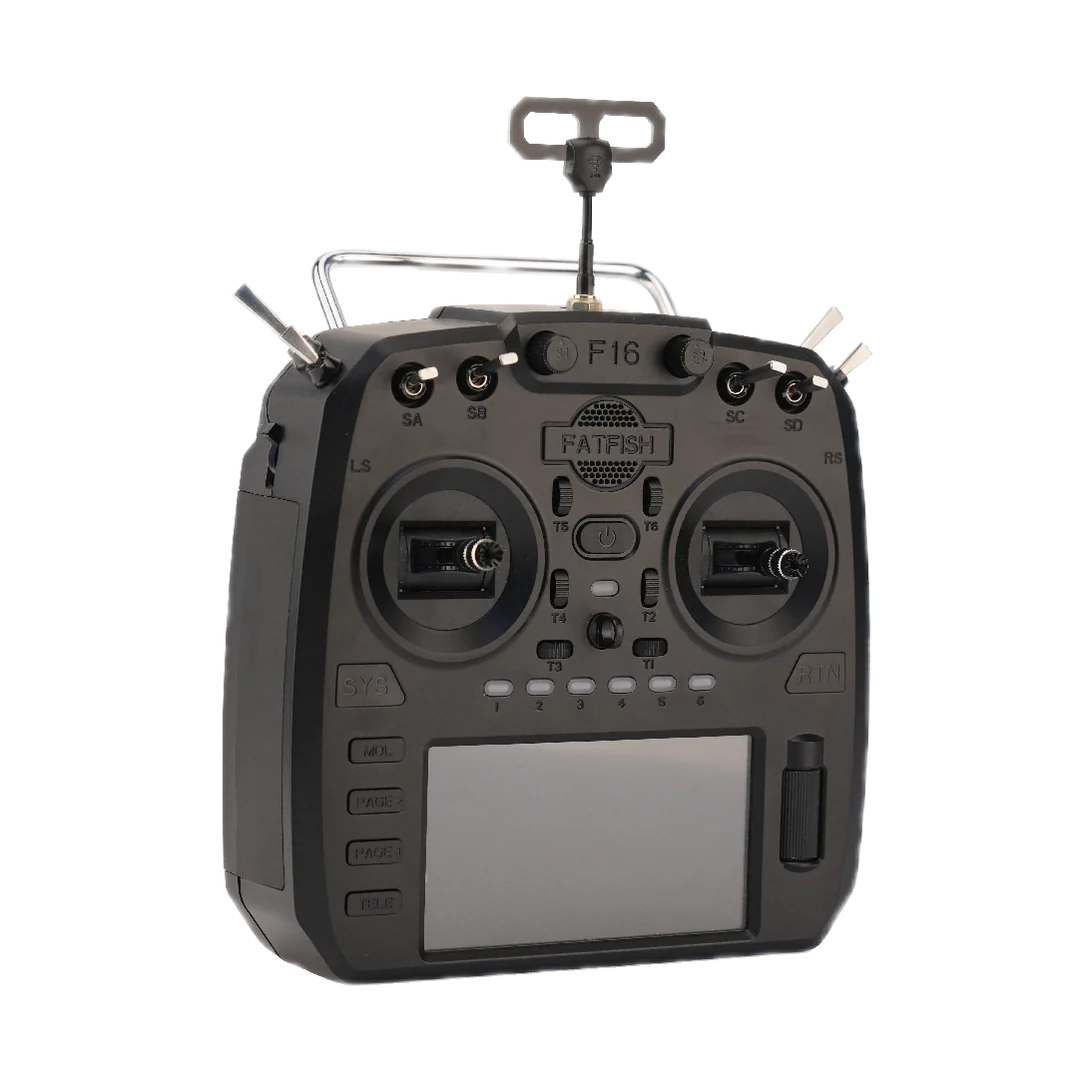

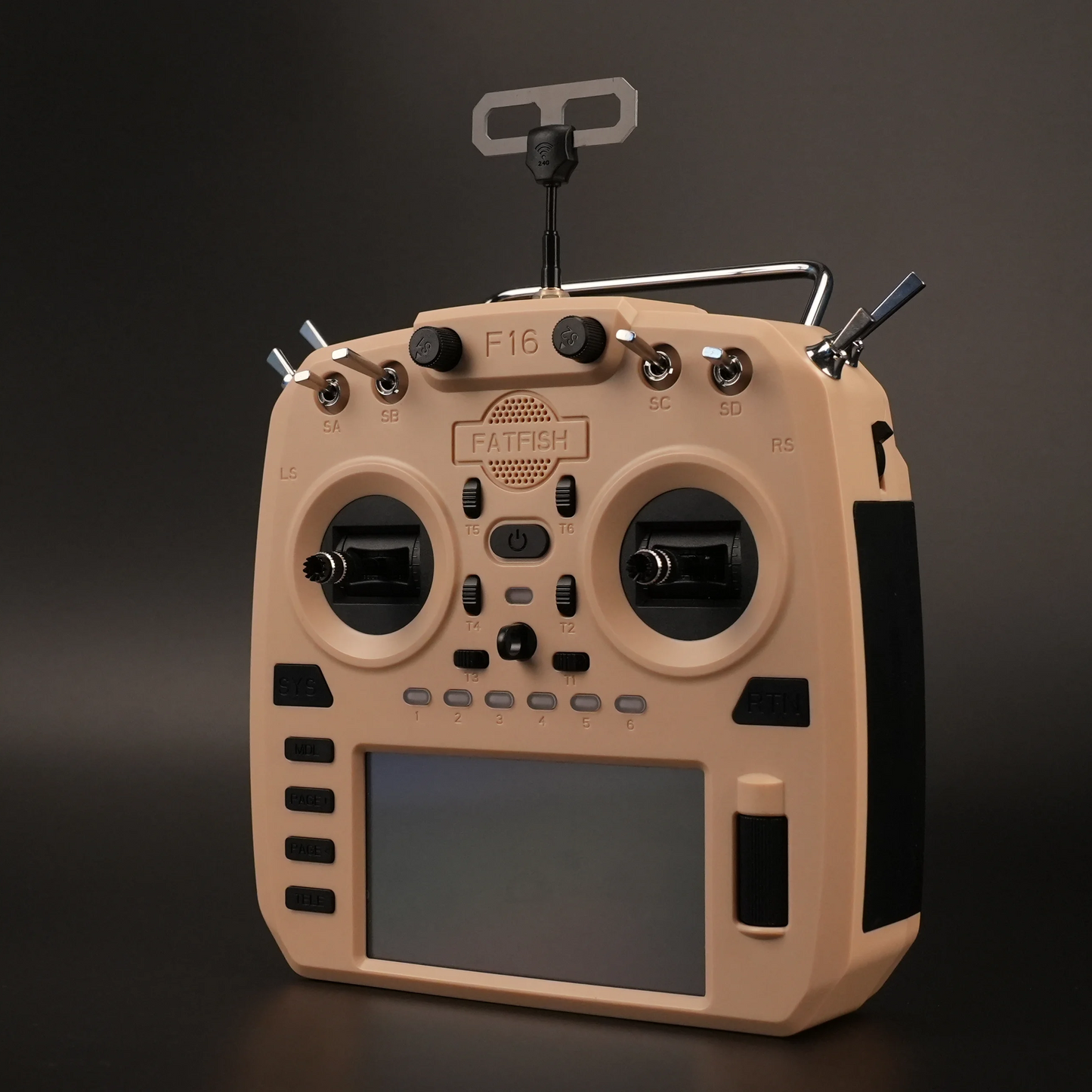

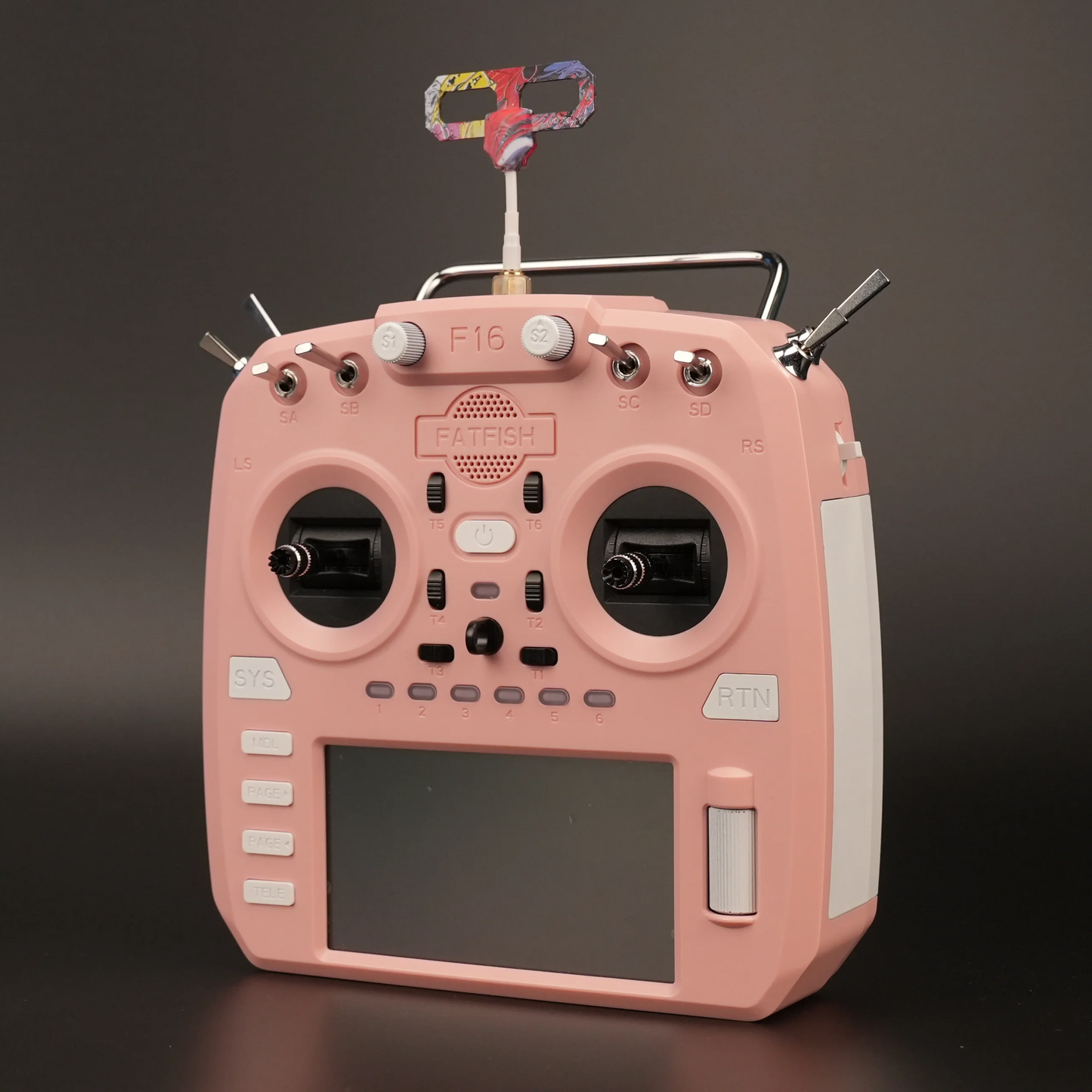

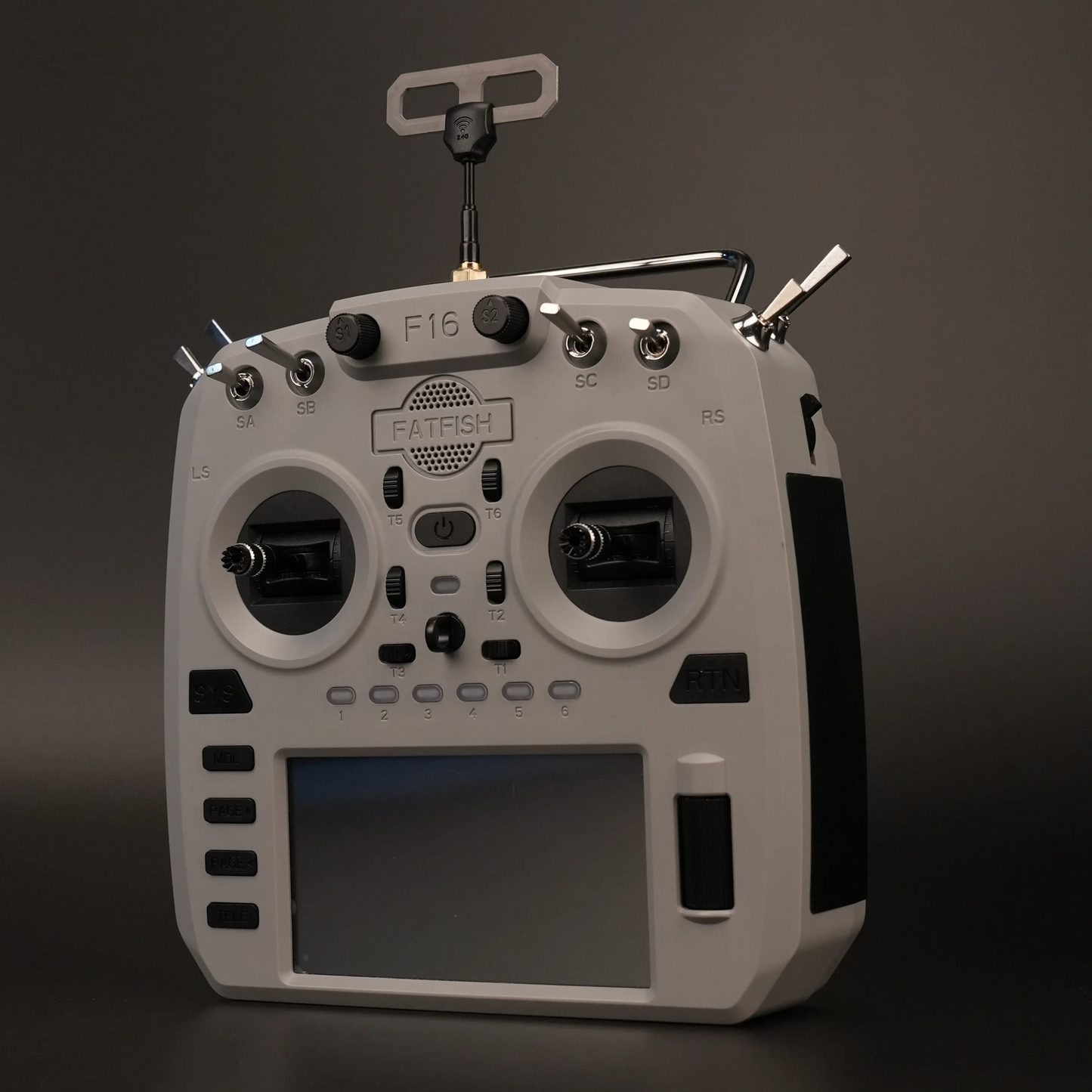

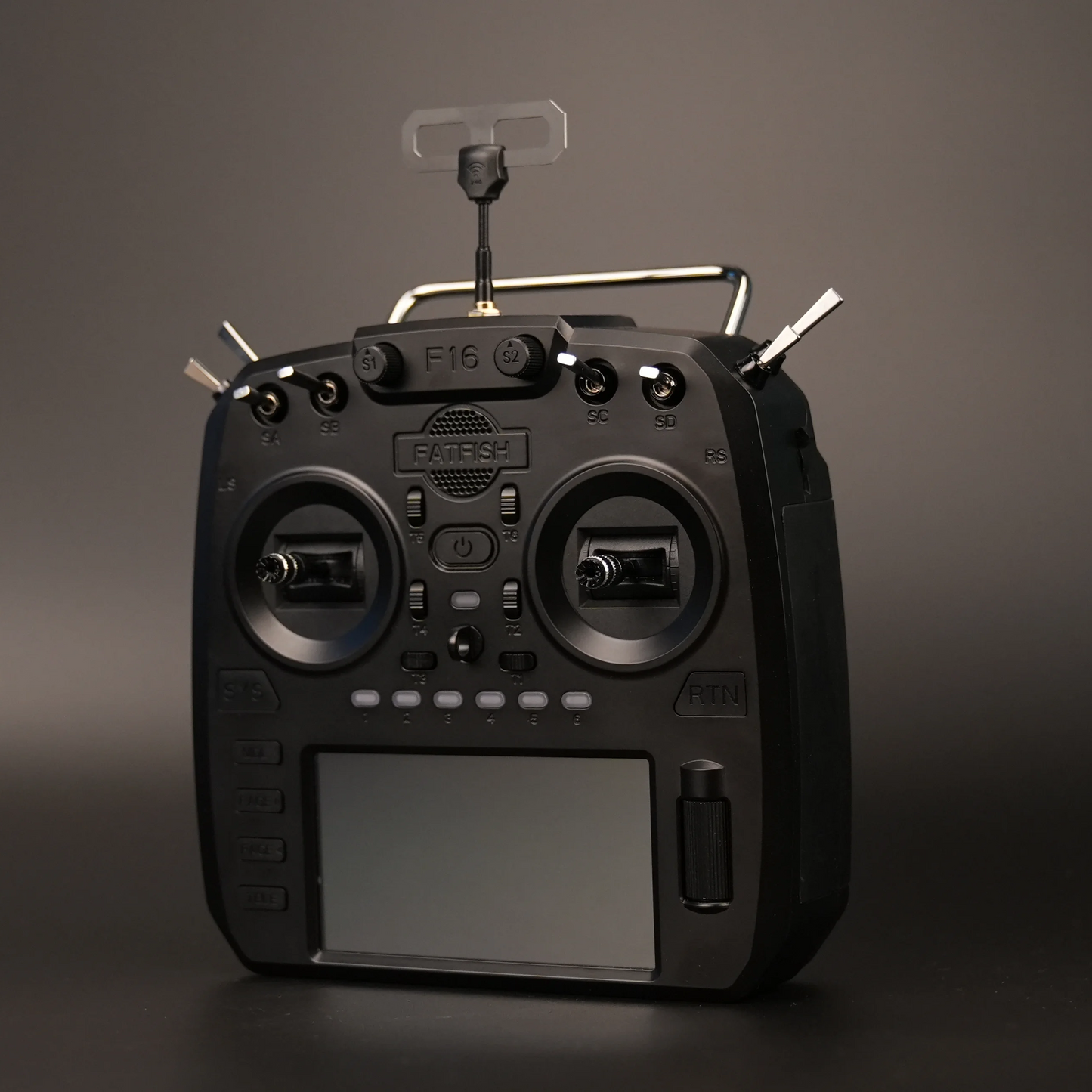

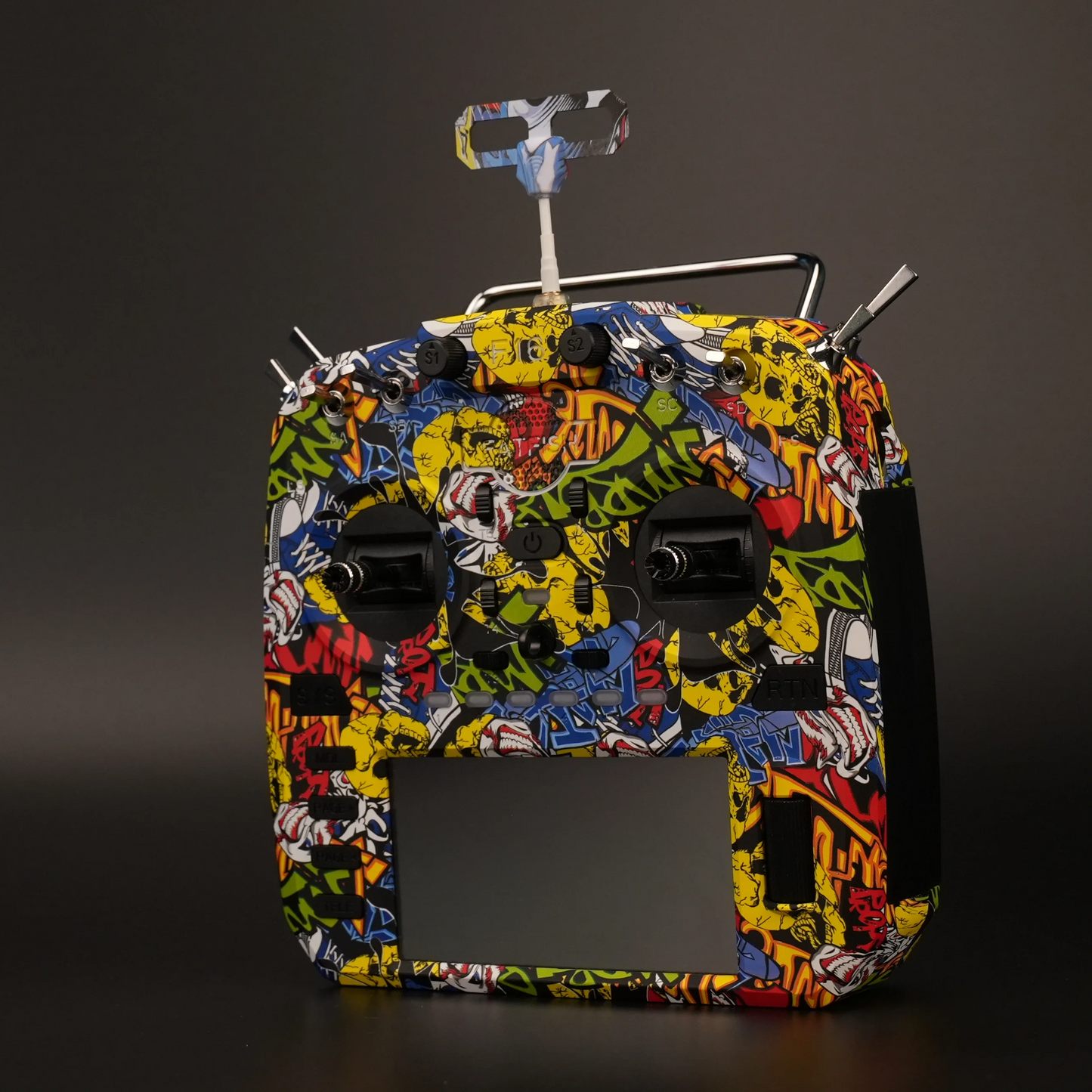

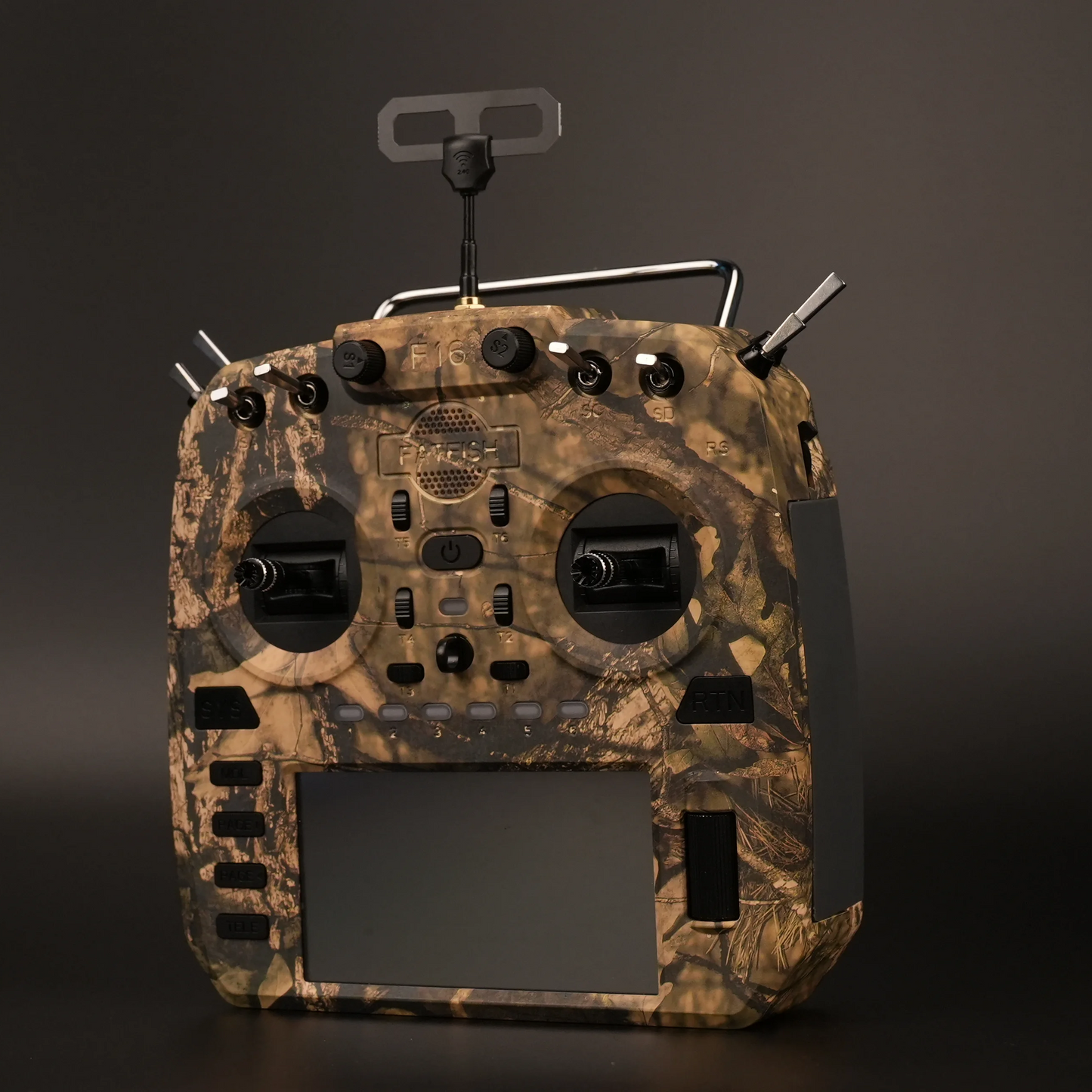

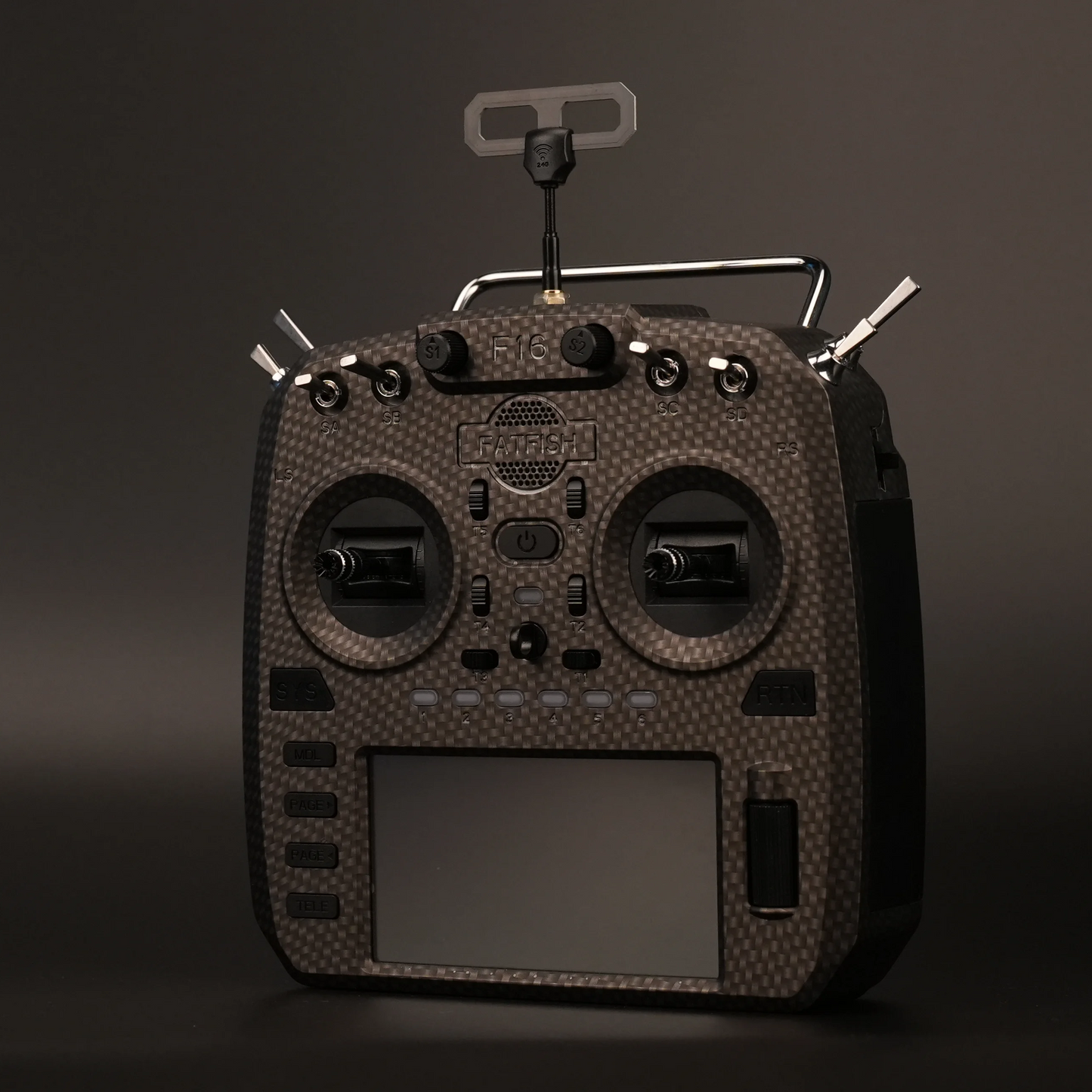

Fatfish F16 16-Channel Radio Transmitter with EdgeTX, Built-in ELRS, and 4.3" High-Brightness Display Hall Gimbal

Fatfish F16 16-Channel Radio Transmitter with EdgeTX, Built-in ELRS, and 4.3" High-Brightness Display Hall Gimbal

Regular price $169.00
Regular price Sale price $169.00
Sale Sold out
Shipping calculated at checkout.

Master the skies with the Fatfish F16 Radio Transmitter. This advanced transmitter offers 16 channels for precise control, integrated EdgeTX for unparalleled customization, and an ELRS (250mW) / 4-in-1 module for superior connectivity. Its 4.3-inch display boasts an ultra-bright 1000-nit screen, ensuring clear visibility even under bright sunlight—perfect for any RC pilot looking to elevate their flying experience.

Key Features:

  • Advanced Control: With up to 16 channels, manage your RC devices with unmatched precision.
  • High-Performance Software: Comes with the integrated EdgeTX operating system, offering extensive customization and setup options.
  • Exceptional Connectivity: Features a built-in ELRS module, ensuring robust and reliable links to your RC models.
  • Superior Display: Enjoy a clear and vibrant view with the 4.3-inch TFT full-color touch display, boasting a brightness of 1000 nits for optimal visibility in all lighting conditions.
  • Versatile Power Options: Supports multiple battery types including 2 x 3.7V Li-ION 18650 or 21700 cells, and 2 x 3.7V Lithium-polymer cells, providing flexibility and convenience for power management.


  • Brand: FATFISH
  • RF Module: Choose between a built-in ELRS or a versatile 4-in-1 multi-protocol module.
  • Operating Voltage: 6.5~8.4V (2S lithium battery compatible)
  • Temperature Range: Operates comfortably from -10 °C to 60 °C (14 °F to 140 °F).
  • Connectivity: Features analog 5.8G video transmission and a JR compatible module bay for expanded capabilities.
  • Upgradability: Update your device easily via USB-C or SD card.
  • Dimensions and Weight: Measures 213 x 200 x 95 mm and weighs 608g (without battery).

Safety Notes:

  • Use only the specified battery types to ensure safety and device integrity. Avoid 3.6v Li-ION cells and 6.6v LiFE battery packs to prevent damage or fire risk. Regularly check battery health and charge in a safe, monitored environment.

Key Features for FATFISH RX5808 Analog Video Receiver:

  • Compact Design: Measuring 854441mm, the RX5808 is compact and lightweight, weighing only 104g.
  • Wide Compatibility: Supports 5.8G frequency with 48 channels, including A, B, E, F, R, L bands.
  • High Sensitivity: Receiver sensitivity of -101dbm ensures a stable and clear video signal.
  • Versatile Power Options: Can be powered by an external battery (2s-3s, 7V-12.4V) or through a remote control when switched to INT mode.
  • User-Friendly Interface: The main interface allows for easy locking and unlocking of manual channels and frequency adjustments with simple button presses.
  • Advanced Menu Options:
    • Scanning Mode: Scan frequencies from 5300-5900MHz and display signal strength.
    • Graph Scan: Visualize channel signal strength with different colors and automatically switch to the strongest signal.
    • RSSI Calibration: Calibrate the RSSI for accurate signal strength measurements.
    • Settings Menu: Adjust screen backlight, fan speed, startup animation, buzzer, and OSD settings.
    • About Menu: View relevant information about the receiver.


  • Module Size: 85*44*41mm
  • Weight: 104g
  • Frequency: 5.8G 48 channels (A, B, E, F, R, L bands)
  • Receiver Sensitivity: -101dbm
  • Maximum Input Voltage: 12.4V
  • Current: 900mA
  • Power Input Options: External battery (2s-3s, 7V-12.4V) or remote control power supply in INT mode
